 HOME >> High Helix Flutes Jobber Drill Split Point

Type 240-SS High Helix Flutes Jobber Drill

Type 240-SS High Helix Flute Jobber Drill Split Point
High Helix Flutes – Jobber Drill Split Point


— Higher helix can also help with chip control by ejecting the chips at a steeper angle.
— High Helix Flutes design allows for increased feed rates up to 2X.
— 135° Split point provides fast penetration and accurate starting
    without a center punch.
— Higher helix angles are normally recommended, and perform well on gummy materials
    like aluminum, and excel in stainless and heat resistant alloys.
Recommended for Stainless Steel, Aluminum, Brass and
    all other non-ferrous metals.
Proudly manufactured in the USA
       with globally sourced material

Adobe Acrobat Logo PDF — High Helix Flutes Jobber Drill Split Point




Helix Angle (Spiral Angle)

An essential feature of a twist drill is the helix angle (spiral angle). It determines the process of chip formation. Larger helix angles provide effective removal of soft, long-chipping materials. The high helix brings the stringy chip up and out of the hole for easy disposal.
Smaller helix angles, on the other hand, are used for hard, short-chipping materials.
Twist drills that have a very Small Helix angle (10° – 19°) have a lengthy spiral. In return, twist drills with a Large Helix angle (27° – 45°) have a rammed (short) spiral. Twist drills with a normal Spiral have a Helix angle of (19° – 40°).



High Helix Flutes – Jobber Drill Sets

13pc High Helix Flutes Jobber Drill Set
13pc. High Helix Flutes Jobber Drill Set
Fractional sizes include: 1/16" - 1/4" by 64ths
Secure, snap-lock steel cover.
Rugged, Heavy gauge ALL steel case.
— Corrosion resistant, epoxy baked on coating.
Proudly manufactured in the USA
       with globally sourced material
Adobe Acrobat Logo PDF — 13pc. High Helix Flutes Jobber Drill Set



15pc High Helix Flutes Jobber Drill Set
15pc. High Helix Flutes Jobber Drill Set
Fractional sizes include: 1/16" - 1/2" by 32nds
Secure, snap-lock steel cover.
Rugged, Heavy gauge ALL steel case.
— Corrosion resistant, epoxy baked on coating.
Proudly manufactured in the USA
       with globally sourced material

Adobe Acrobat Logo PDF — 15pc. High Helix Flutes Jobber Drill Set



29pc High Helix Flutes Jobber Drill Set
29pc. High Helix Flutes Jobber Drill Set
Fractional sizes include: 1/16" - 1/2" by 64ths
Secure, snap-lock steel cover.
Rugged, Heavy gauge ALL steel case.
— Corrosion resistant, epoxy baked on coating.
Proudly manufactured in the USA
       with globally sourced material
Adobe Acrobat Logo PDF — 29pc. High Helix Flutes Jobber Drill Set

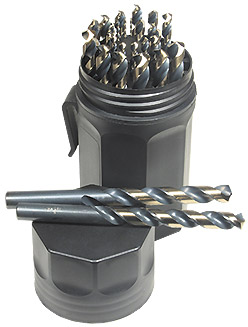

29pc Ultra Dex High Helix Flutes Jobber Drill Set
29pc. Black Ultra Dex - High Helix Flutes Jobber Drill Set
Fractional sizes include: 1/16" - 1/2" by 64ths
— Reliable high–density plastic.
— Waterproof, Unbreakable Ultra Dex
Strong, lightweight and highly–impact resistant.
— Securely stores jobber drills while protects from harsh environments
Proudly manufactured in the USA
       with globally sourced material
Adobe Acrobat Logo PDF – 29pc. Ultra Dex - High Helix Flutes Jobber Drill Set
