 PRODUCT CATALOG >> Type 24-RNCN M42 TiN Plug Tap

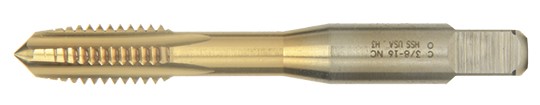

M42 Titanium Nitride Straight Flute Plug Tap

M42 Cobalt Titanium Nitride Straight Flute Plug Tap
M42 Cobalt Titanium Nitride Plug Tap


— These steels are ideal for cutting tools because they have a high red hardness
     that gives it much higher heat resistance.
— Allowing tools made of Cobalt to be run at faster speeds and higher feed rates.
— Fractional taps for hardened steel and iron.
— Used in Cast iron, Brass, Bronze, Armor plate with a Rockwell C hardness
     between C30 - C45 and hard plastic.
Proudly manufactured in the USA
       with globally sourced material
Adobe Acrobat Logo PDF — M42 TiN Straight Flute Plug




Chamfer
The tapering of the threads at the front end of each land of a tap by cutting away and relieving the crest of the first few teeth to distribute the cutting action over several teeth; Taper taps are chamfered 7-10 threads, Plug taps are chamfered 3-5 threads, Bottoming taps are chamfered 1-2 threads.
